MIDI_VIRTUAL_KEYBOARD_SETTINGS structure

Previous pageReturn to chapter overview

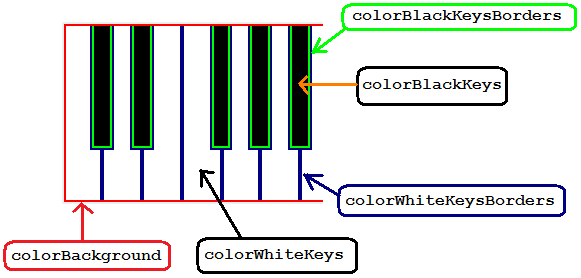

The MIDI_VIRTUAL_KEYBOARD_SETTINGS structure describes the graphical settings applied to a specific virtual piano keyboard. The current settings can be retrieved through the MidiVirtualKeyboard.GraphicalSettingsGet method and modified through the MidiVirtualKeyboard.GraphicalSettingsSet method. Below you can see an example of a horizontal virtual piano keyboard with default colors.





For further details about the use of the virtual MIDI keyboard see the MidiVirtualKeyboard object section and the How to manage the virtual MIDI piano keyboard tutorial.





Visual C++ definition



typedef struct

{

OLE_COLOR        colorBackground;

OLE_COLOR        colorWhiteKeys;

OLE_COLOR        colorBlackKeys;

OLE_COLOR        colorWhiteKeysBorders;

OLE_COLOR        colorBlackKeysBorders;

OLE_COLOR        colorWhiteKeysPressed;

OLE_COLOR        colorBlackKeysPressed;

OLE_COLOR        colorWhiteKeysPressedBorders;

OLE_COLOR        colorBlackKeysPressedBorders;

} MIDI_VIRTUAL_KEYBOARD_SETTINGS;





Visual Basic definition



Public Type MIDI_VIRTUAL_KEYBOARD_SETTINGS

 colorBackground As OLE_COLOR

 colorWhiteKeys As OLE_COLOR

 colorBlackKeys As OLE_COLOR

 colorWhiteKeysBorders As OLE_COLOR

 colorBlackKeysBorders As OLE_COLOR

 colorWhiteKeysPressed As OLE_COLOR

 colorBlackKeysPressed As OLE_COLOR

 colorWhiteKeysPressedBorders As OLE_COLOR

 colorBlackKeysPressedBorders As OLE_COLOR

End Type







Member

Description





colorBackground

The color used for rendering the keyboard's background  (default is set to Black)

colorWhiteKeys

The color used for rendering white keys (default is set to White)

colorBlackKeys

The color used for rendering black keys (default is set to Black)

colorWhiteKeysBorders

The color used for rendering the border of white keys (default is set to Black)

colorBlackKeysBorders

The color used for rendering the border of black keys (default is set to Black)

colorWhiteKeysPressed

The color used for rendering white keys in pressed state (default is set to Light Blue)

colorBlackKeysPressed

The color used for rendering black keys in pressed state (default is set to Light Blue)

colorWhiteKeysPressedBorders

The color used for rendering the border of white keys in pressed state (default is set to Black)

colorBlackKeysPressedBorders

The color used for rendering the border of black keys in pressed state (default is set to Black)
