Adding the API to an ASP.NET web application with C# code-behind

Previous pageReturn to chapter overviewNext page

Find below required steps:



Open the project you are working on
Inside the "Solution Explorer" right-click the mouse button on the "References" item
From the context menu select the "Add reference..." menu item; this will open the "Add reference" dialog box.





Select the ".NET" tab and, on the list of installed components, find the component named "Audio Sound Editor API" as displayed below and, if your application targets .NET framework versions 2.0, 3.0 or 3.5, select "Audio Sound Editor API v2" or, if your application targets .NET framework 4, select "Audio Sound Editor API v4"





Pressing the "OK" button will bring you again to your project working area and the References item of the Solution Explorer will appear like this:





if you selected "Audio Sound Editor API v2" or like this





if you selected "Audio Sound Editor API v4"



inside the properties of the added reference, be sure to set the "Copy local" property to "True" and the "Specific version" property to "False"





now we can start coding so we need to create a new instance of the component's class inside the C# code-behind of our web page that will instance and use and, finally, we need to initialize the component: for this purpose it's mandatory a call to the InitEditorNoPlayback method because, being the component instanced server-side, we don't have the need for playback support. The code below shows how to perform instancing and initialization of the component inside the Page_Load function:





Visual C#



using System;

using System.Collections.Generic;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;



// add the namespace of the API

using AudioSoundEditorApi;



namespace WebApplication1

{

 public partial class _Default : System.Web.UI.Page

 {

  // instance the API as a global variable

  AudioSoundEditorApi.AudioSoundEditorApi m_audioAPI = new AudioSoundEditorApi.AudioSoundEditorApi();



   protected void Page_Load (object sender, EventArgs e)

   {

    // initialize the API

    m_audioAPI.InitEditorNoPlayback ();



     ....



   }

 }

}





In order to work on the server, the API needs to find multimedia engines AdjMmsEng.dll and AdjMmsEng64.dll: for this purpose you should add them to the project. By default, during the publishing phase, the assembly of the web application and assemblies of referenced APIs are installed on the server inside the "bin" sub-folder of the web application's main folder: our multimedia engine should be installed there too. Usually the "bin" folder is not visible on the "Solution explorer" window so we should make it visible by selecting the "Project/Show All Files" menu item of Visual Studio. At this point we could see the "bin" folder like this:





In order to add our multimedia engines to the project, right click the "bin" folder and select the "Include In Project" menu item from the context menu and finally right click again the "bin" folder and select the "Add > Existing Item..." menu item as seen below:

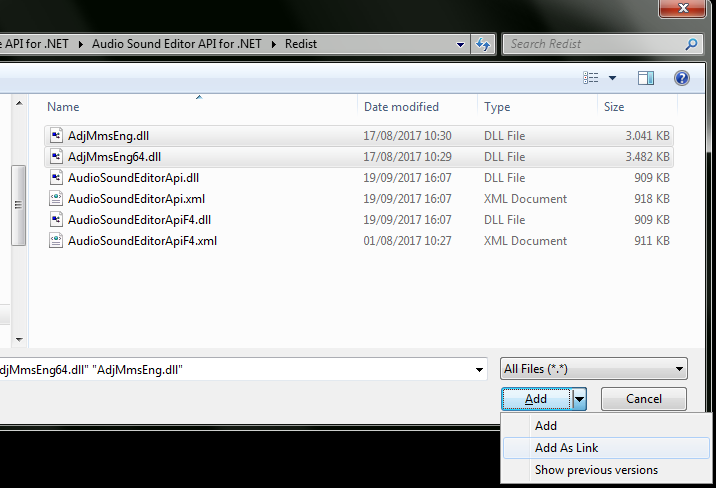

at this point locate the position where multimedia engines AdjMmsEng.dll and AdjMmsEng64.dll are installed on your development PC and use the "Add As Link" option as seen below:





In case you should need to provide the possibility to convert audio files stored inside the server into a different audio format requiring the usage of an external command line encoder, like Lame.exe for MP3 or OggEnc.exe for Ogg Vorbis, it's recommended that you install the external command line encoders inside the same server's folder of the assembly AudioSoundEditorApi.dll and of the multimedia engines AdjMmsEng.dll and AdjMmsEng64.dll; for this purpose you may follow the exact same procedure described above for the multimedia engines.



Now all is ready for publishing the web application on the server: multimedia engines will be automatically copied in the same API's folder and will be available for interacting with the AudioSoundEditorApi.dll assembly.



You can now start developing your code around the API as described inside the How to use the API in your projects section. Below you will find a code snippet that, given a sound file stored inside the server, will convert it from AIFF format to MP3, will load and analyze the waveform of the new MP3 file, will generate a picture of the waveform itself and finally will display the waveform's picture on the web page.



Visual C#



using System;

using System.Collections.Generic;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;



// add the namespace of the API

using AudioSoundEditorApi;



namespace WebApplication1

{

 public partial class _Default : System.Web.UI.Page

 {

  // instance the API as a global variable

  AudioSoundEditorApi.AudioSoundEditorApi m_audioAPI = new AudioSoundEditorApi.AudioSoundEditorApi();



   protected void Page_Load (object sender, EventArgs e)

   {

    // initialize the API

    m_audioAPI.InitEditorNoPlayback ();



    // convert an existing file, stored inside the server, from AIFF format to MP3

    string        strPath = Request.PhysicalApplicationPath;

    strPath += "myfile.aiff";

    m_audioAPI.EncodeFormats.FormatToUse = enumEncodingFormats.ENCODING_FORMAT_MP3;

    m_audioAPI.EncodeFormats.MP3.EncodeMode = enumMp3EncodeModes.MP3_ENCODE_PRESETS;

    m_audioAPI.EncodeFormats.MP3.Preset = enumMp3EncodePresets.MP3_PRESET_MEDIUM;



    enumErrorCodes err = m_audioAPI.ConvertFile (strPath);

    form1.InnerHtml += "Conversion result: " + err.ToString () + " " + strPath + "<BR>";

    if (err == enumErrorCodes.ERR_NOERROR)

    {

      // load the converted MP3 file into the API

      strPath = Request.PhysicalApplicationPath;

      form1.InnerHtml += "Application path: " + strPath + "<BR>";

      strPath += "myfile.mp3";

      m_audioAPI.LoadSound (strPath);



      // display the sound duration

      form1.InnerHtml += "Sound Duration: ";

      form1.InnerHtml += m_audioAPI.GetFormattedSoundDuration (true, true) + "<BR>";



      // analyze the sound's waveform and generate its bitmap

      m_audioAPI.DisplayWaveformAnalyzer.AnalyzeFullSound ();



      // generate the bitmap in GIF format and store it into the server

      strPath = Request.PhysicalApplicationPath;

      strPath += "bitmap.gif";

      m_audioAPI.DisplayWaveformAnalyzer.SnapshotViewSaveToFile (

                      enumWaveSnapshotViewMode.WAVE_SNAPSHOT_MODE_WAVEFORM,

                      0, -1, 200, 50, enumWaveformChannels.WAVEFORM_CHAN_MIXED,

                      strPath, enumGraphicFormats.GRAPHIC_FORMAT_GIF, 0);



      // display the bitmap on the web page

      form1.InnerHtml += "<BR><BR>";

      form1.InnerHtml += "<img src=\"./bitmap.gif\" alt=\"My waveform\">";

    }



     ...



    // dispose the API

     m_audioAPI.Dispose ();

   }

 }

}







IMPORTANT: Before exiting the container application, in order to avoid memory leaks, it's recommended that you explicitly call the Dispose method of the API.
