How to manage audio flow through WASAPI

Previous pageReturn to chapter overviewNext page

[This tutorial applies to Windows Vista and later versions only]



Starting from Windows Vista, Microsoft has rewritten the multimedia sub-system of the Windows operating system from the ground-up; at the same time Microsoft introduced a new API, also known as Core audio API, which allows interacting with the multimedia sub-system and with audio endpoint devices (sound cards).



The Core Audio APIs implemented in Windows Vista and higher versions are the following:

Multimedia Device (MMDevice) API. Clients use this API to enumerate the audio endpoint devices in the system.

DeviceTopology API. Clients use this API to directly access the topological features (for example, volume controls and multiplexers) that lie along the data paths inside hardware devices in audio adapters.

EndpointVolume API. Clients use this API to directly access the volume controls on audio endpoint devices. This API is primarily used by applications that manage exclusive-mode audio streams.

Windows Audio Session API (WASAPI). Clients use this API to create and manage audio streams to and from audio endpoint devices.



All of the mentioned stuffs, with the exception of WASAPI, are accessible through the CoreAudioDevices COM object accessible through the CoreAudioDevices property as described inside the tutorial How to access settings of audio devices in Windows Vista and later versions.



In general, WASAPI operates in two modes:



In exclusive mode (also called DMA mode), unmixed audio streams are rendered directly to the audio adapter and no other application's audio will play and signal processing has no effect. Exclusive mode is useful for applications that demand the least amount of intermediate processing of the audio data or those that want to output compressed audio data such as Dolby Digital, DTS or WMA Pro over S/PDIF.



In shared mode, audio streams are rendered by the application and optionally applied per-stream audio effects known as Local Effects (LFX) (such as per-session volume control). Then the streams are mixed by the global audio engine, where a set of global audio effects (GFX) may be applied. Finally, they're rendered on the audio device. Differently from Windows XP and older versions, there is no more direct path from DirectSound to the audio drivers, indeed DirectSound and MME are totally emulated through WASAPI working in shared mode, which results in pre-mixed PCM audio that is sent to the driver in a single format (in terms of sample rate, bit depth and channel count). This format is configurable by the end user through the "Advanced" tab of the Sounds applet of the Control Panel as seen on the picture below:





In order to enable the usage of WASAPI you must call the InitDriversType method with the nDriverType parameter set to DRIVER_TYPE_WASAPI. The call to the InitDriversType method is mandatory before performing calls to the InitRecordingSystem, GetInputDevicesCount and GetInputDeviceDesc methods: if the InitDriversType method should be called at a later time, it would report back an error; if for any reason you should need calling it at a later time, you would need performing the following sequence of calls:



1. ResetEngine method

2. InitDriversType method

3. Eventual new enumeration of input devices through the GetInputDevicesCount and GetInputDeviceDesc methods.

4. ResetControl method



After initializing the usage of WASAPI through the InitDriversType method, Active Sound Recorder gives access to WASAPI itself through the WASAPI COM object accessible through the WASAPI property.



WASAPI can manage three different types of devices:



Render devices are playback devices where audio data flows from the application to the audio endpoint device, which renders the audio stream..
Capture devices are recording devices where audio data flows from the audio endpoint device, that captures the audio stream, to the application..
Loopback devices are recording devices that capture the mixing of all of the audio streams being rendered by a specific render device, also if audio streams are being played by third-party multimedia application like Windows Media Player: each render device always has a corresponding loopback device.



Available WASAPI devices can be enumerated through the WASAPI.DeviceGetCount and WASAPI.DeviceGetDesc methods: if you only need enumerating input devices you can also use the GetInputDevicesCount and GetInputDeviceDesc methods. In both cases, only devices reported as "Enabled" by the system will be listed: unplugged or disabled devices will not be enumerated.



Before using an input device for recording or an output device for playback, starting the device itself is a mandatory operation: for exclusive mode you can use the WASAPI.DeviceStartExclusive method while for shared mode you can use the WASAPI.DeviceStartShared method. In both cases the started device can be stopped through the WASAPI.DeviceStop method. You can check if a device is already started through the WASAPI.DeviceIsStarted method.



It's important to note that, also if the output device and the input device are both located on the same physical device, the system will see them as different entities so you will have to start them as separate devices using two calls to the DeviceStartExclusive or WASAPI.DeviceStartShared methods.



For exclusive mode you need to start the device by specifying, inside the call to the WASAPI.DeviceStartExclusive method, the playback format which is represented by the frequency and number of channels: you can know if a WASAPI device supports a specific format through the WASAPI.DeviceIsFormatSupported method.



For shared mode you directly rely on the playback format chosen from the Sound applet of the Windows control panel: you can know which is the current format through the WASAPI.DeviceSharedFormatGet method.



Now, once the capture and loopback devices needed for recording have been started, we have two options:



Start a recording session from a single input device



In order to start a recording session from a capture device you can use the StartFromWasapiCaptureDevice method.

Through WASAPI loopback it's also possible capturing the audio stream that is being played by a rendering endpoint device, also if the stream is being played by other external applications, for example by Windows Media Player or WinAmp: in order to start a recording session from a loopback device you can use the StartFromWasapiLoopbackDevice method.



As seen for other recording start methods described inside the How to perform a recording session tutorial, the recorded stream will be stored into an output file or into a memory buffer.



Start a recording session from multiple input devices at the same time and have the streams mixed into one single output file



This solution allows getting various audio streams, incoming from different input devices (both capture and loopback devices), and to pass their contents to the WASAPI mixer that will combine them together in order to have in output a single audio stream, allowing to store the result into a single output file or into a memory buffer.

In order to achieve this feature, after having started the input devices you want to record from, you need to attach them to the WASAPI mixer through separate calls to the WASAPI.MixerInputDeviceAttach method (one call for each input device): once all of the input devices of interest have been attached, you can start the recording session through the StartFromWasapiMixer method.



It' important to note that, once the recording session has been started, you cannot attach further input devices until the recording session has been stopped through the Stop method. After stopping the recording session and before starting a new one, you may eventually detach one or more input devices through the WASAPI.MixerInputDeviceDetach method; you can know if a specific input device is already attached to the mixer using the WASAPI.MixerInputDeviceIsAttached method and you can enumerate attached input devices through the combination of the WASAPI.MixerInputDeviceAttachedCountGet and WASAPI.MixerInputDeviceAttachedInfoGet methods.



Although it would be possible to detach a specific input device from the WASAPI mixer during a recording session, as mentioned before you would not be able to attach it back again while the recording session is in place: for this reason, if you should need to temporarily "disable" a specific input device, it would be convenient setting its volume to 0 using the WASAPI.DeviceVolumeSet method and, when needed again, to "enable" back the specific input device by reapplying its original volume; further information about volume settings are described inside the next paragraph.





WASAPI clients can individually control the volume level of each audio session. WASAPI applies the volume setting for a session uniformly to all of the streams in the session; you can modify the session volume through the WASAPI.DeviceVolumeSet method and to retrieve the current volume through the WASAPI.DeviceVolumeGet method. In case you should need to get/set the master volume for the given WASAPI device, shared by all running processes, you should use the CoreAudioDevices.MasterVolumeGet / CoreAudioDevices.MasterVolumeSet methods.



This latest topic brings to mind an important issue: while the list of CoreAudio devices, depending upon the value of the nStateMask parameter of the CoreAudioDevices.Enum method, may not contain unplugged or disabled devices, the list of WASAPI devices will always contain all of the devices installed inside the system, also if currently unplugged or disabled: in order to know the one-to-one correspondence between a specific WASAPI device and a specific CoreAudio device, which may be listed at different positions inside the respective lists, you should use the WASAPI.DeviceCoreAudioIndexGet method: with this method, given the zero-based index of the device inside the list of WASAPI devices, you could be informed about the corresponding zero-based index of the same physical device inside the list of CoreAudio devices.



The configuration of audio devices is not static: for example when dealing with USB connected audio devices the configuration may change when a USB device is plugged/unplugged or when Microphones or Line-In are physically inserted or removed from respective connectors. When the configuration of audio devices changes, it could be needed to enumerate again the available input devices and to properly assign them to the instanced players by resetting the multimedia engine and the control as described at the beginning of this tutorial.



In case a USB audio device should be added to the system, for example when an USB sound card is installed for the first time, the container application can be informed in real time by catching the CoreAudioDeviceAdded event.



When a device has been added to the system, it may still be reported as "Disabled" due to the jack-sensing feature that keeps a device disabled until the microphone is not physically plugged into the sound card; when the audio device is set as "Enabled" or "Disabled", one or more CoreAudioDeviceStateChange events could be generated.



If the USB audio device should be uninstalled from the system, by physically removing the audio device and by uninstalling its driver from the system, the CoreAudioDeviceRemoved event would be generated.



As mentioned, you could receive more than one CoreAudioDeviceStateChange event at the same time so, when eventually starting the reset procedure, you should ignore CoreAudioDeviceStateChange events after the first one.

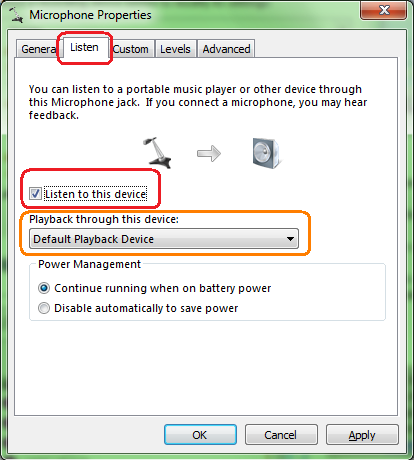

If supported by the driver of the sound card, through WASAPI is also possible emulating the "Listen to this device" feature (see the screenshot below) available inside the "Listen" tab of the "Sound" applet of the Windows control panel:





The "Listen to this device" feature allows passing the audio incoming from the microphone through the PC speakers directly or, in alternative, you may connect your MP3 player (iPod, mobile phone, etc.) to the Line-In port (using the jack contact), and hear the music again through the PC speakers.

This feature can be emulated by invoking the WASAPI.ListenInputDeviceStart method, which receives the index of the capture device and of the render device,and can be stopped at a later time through the WASAPI.ListenInputDeviceStop method.





Samples of usage of WASAPI in Visual C++ and Visual Basic 6 can be found inside the following samples installed with the product's setup package:

- WasapiRecorder

- WasapiInputMixerRecorder
