Adding the control to a MFC project developed through Visual Studio 6

Previous pageReturn to chapter overviewNext page

Find below required steps:



Open the project you are working on
Choose the "Project/Add To Project/Components and Controls..." menu item
From the "Components and Controls Gallery" select the "Registered ActiveX controls" folder

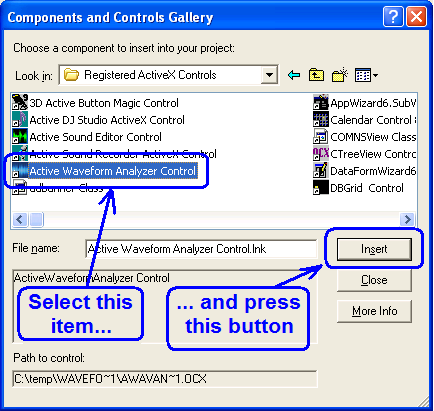

From the "Components and Controls Gallery", select the "Active Waveform Analyzer Control" element as seen in the screenshot below and press the Insert button

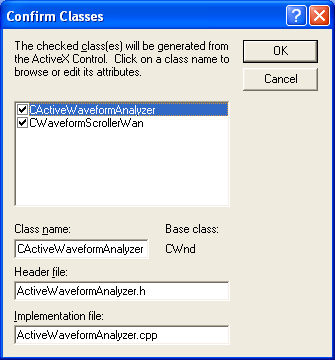

Press the "OK" button on the message box and dialog box that will appear.





Now press the "Close" button of the "Components and Controls Gallery" that will take you again to your project working area
Once the control has been inserted inside the project, the following icon should appear inside your development environment toolbox

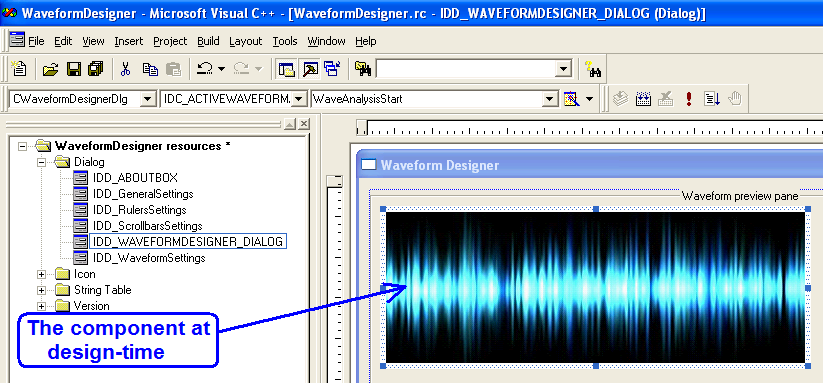

Now you can select the control icon inside the toolbox and drag it into the dialog box under editing; the following icon will appear on the dialog box (note that this icon will be invisible at runtime)





You can now start developing your code around the control as described inside the How to use the control in your projects section.
