How to change the button appearance

Previous pageReturn to chapter overviewNext page

The simplest way to change a button's appearance is to use, inside 3D Button Visual Editor, the Shape and Surface tabs. At run-time each of these properties can be referenced by name.

Note: The images below have hot links to take you to explanations of the various button settings.

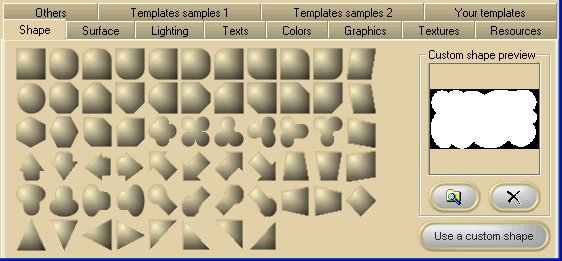

3dabm_i0000b4

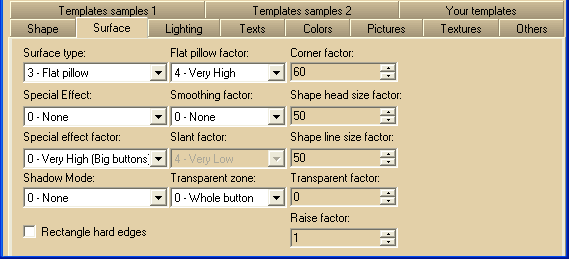

3dabm_i0000b5





Item name

Description

Corresponding property


Shape and orientation

Button's shape and orientation

Shape and Orientation


Surface type

Type of surface associated with the button

Surface


Special Effect

Special effect applied to the button border

SpecialEffect


Special Effect factor

Special effect factor applied to the button border

SpecialEffectFactor


Shadow Mode

Specifies the kind of shadow that will be displayed under the button

ShadowMode


Rectangle hard edges

Specifies if a rectangle shaped button will have hard edges

RectHardEdges


Flat pillow factor

Changes the aspect of a Flat Pillow surface

FlatPillowFactor


Smoothing factor

The amount of smoothing applied to the button surface

SmoothEdges


Corner factor

The corner factor applied to Rounded Rectangle and Gem shapes

CornerFactor


Raise factor

Changes the 3D height of the button

ButtonRaiseFactor


Slant factor

The kind of slant applied to parallelogram and trapeze shaped buttons

Slant


Shape head size factor

The head factor for certain kind of shapes like arrow and keyhole

ShapeHeadFactor


Shape line size factor

The line factor for certain kind of shapes like arrow and keyhole

ShapeLineFactor


Transparent factor

The level of alpha channel transparency applied to the button surface

SurfaceTransparentFactor


Transparent zone

The zone affected by alpha channel transparency when a special effect is applied

SurfaceTransparentZone


Shape mask preview

Preview of the picture that will be used as a mask for determining the shape for Custom shaped buttons

PictureCustom


3dabm_i000013 Browse button

Browses the current PC folders for a picture that will be used as a mask for determining the shape for Custom shaped buttons




3dabm_i000015 Delete button

Deletes the current picture used as a mask for determining the shape for Custom shaped buttons





Starting from version 8.10 of the control, there is the possibility, at runtime, to provide further custom drawing directly from your application code: see the How to perform custom graphic rendering over the control surface section for details.
