Other useful settings

Previous pageReturn to chapter overviewNext page

Through the Others tab of 3D Button Visual Editor you can define, at Design-time, some other settings of the button.

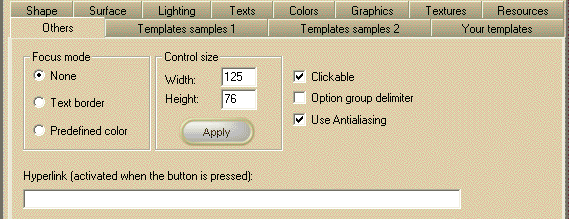

Note: The image below has hot links to each topic shown in the graphic.

3dabm_i000064





Item name

Description

Corresponding property


Focus mode "None"

Sets the focus mode to "None".

FocusMode


Focus mode "Text border"

Sets the focus mode to "Text border".

FocusMode


Focus mode "Predefined color"

Sets the focus mode to "Predefined color".

FocusMode


Control width

The control's width in pixels

Depends upon the development environment


Control height

The control's height in pixels

Depends upon the development environment


"Apply" button

Applies to the control the dimensions entered inside the "Width" and "Height" edit boxes




Clickable

Enables/disables the button click

Clickable


Option group delimiter

Sets/resets the button as group delimiter. This option is only available for radio buttons.

OptionGroupDelimiter


Use antialiasing

Enables/disables the use of anti-aliasing algorithms for rendering the button surface. This option doesn't affect text rendering.

UseAntialiasing


Hyperlink

Sets a connection from your program to another location.

Hyperlink
