WANALYZER_WAVEFORM_SETTINGS structure

Previous pageReturn to chapter overviewNext page

The WANALYZER_WAVEFORM_SETTINGS structure describes settings applied while rendering the waveform on the Waveform Analyzer. The current settings can be retrieved through the WaveformAnalyzer.SettingsWaveGet method and modified through the WaveformAnalyzer.SettingsWaveSet method.



For details about the use of the Waveform Analyzer refer to the How to use the Waveform Analyzer section.

For further details about methods of the Waveform Analyzer refer to the WaveformAnalyzer object section.



Visual C++ definition



typedef struct

{

     long nStereoVisualizationMode;

     OLE_COLOR colorWaveLinePeak;

     OLE_COLOR colorWaveLineCenter;

     short nWaveLineIntensityFactor;

     OLE_COLOR colorWaveBackground;

     short bUseHalfColorsForPeaks;

     long nSelectionMode;

     OLE_COLOR colorWaveLineSelPeak;

     OLE_COLOR colorWaveLineSelCenter;

     OLE_COLOR colorWaveSelBackground;

     OLE_COLOR colorTransparentGlass;

     short nTransparentGlassFactor;

     OLE_COLOR colorVolumeLevelLine;

     OLE_COLOR colorTimeLine;

     long nTransparentGlassType;

     short nTransparentGlassPos3D;

     short bTransparentGlassInvert3D;

     short bDrawLinesOverWave;

} WANALYZER_WAVEFORM_SETTINGS;



This data structure is defined inside the AdjMmsEngDef.h header file which can be found inside the product's Include directory (default C:\Program Files\Active Sound Recorder\include).



Visual Basic definition



Public Type WANALYZER_WAVEFORM_SETTINGS

    nStereoVisualizationMode as enumWaveformStereoModes

    colorWaveLinePeak as OLE_COLOR

    colorWaveLineCenter as OLE_COLOR

    nWaveLineIntensityFactor as Integer

    colorWaveBackground as OLE_COLOR

    bUseHalfColorsForPeaks as Boolean

    nSelectionMode as enumWaveformSelectionMode

    colorWaveLineSelPeak as OLE_COLOR

    colorWaveLineSelCenter as OLE_COLOR

    colorWaveSelBackground as OLE_COLOR

    colorTransparentGlass as OLE_COLOR

    nTransparentGlassFactor as Integer

    colorVolumeLevelLine as OLE_COLOR

    colorTimeLine as OLE_COLOR

    nTransparentGlassType as enumTranspGlassType

    nTransparentGlassPos3D as Integer

    bTransparentGlassInvert3D as Boolean

    bDrawLinesOverWave as Boolean

End Type



This data structure is defined inside the AsrecDef.bas module file which can be found inside the product's Include directory (default C:\Program Files\Active Sound Recorder\include).



On the screenshot A below you can see the various involved colors: the portion with blue background represents a selection:





                                                 Screenshot A

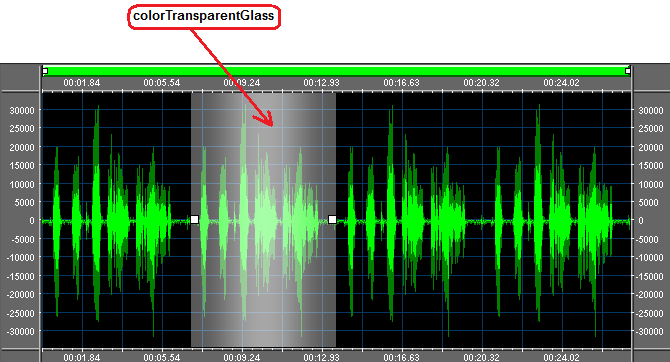

On the screenshot B below you can see the default colors with a selection rendered as a transparent glass.:







                                                 Screenshot B





Member

Description





nStereoVisualizationMode

Visualization mode used for displaying stereo sounds

Supported values are the following:

Mnemonic constant

Value

Meaning

STEREO_MODE_CHANNELS_BOTH (default)

0

Right and left channels are displayed separately on two different panes as seen on the pictures A and B above.

STEREO_MODE_CHANNELS_LEFT

1

Only the left channel content is displayed on a single pane

STEREO_MODE_CHANNELS_RIGHT

2

Only the right channel content is displayed on a single pane

STEREO_MODE_CHANNELS_MIXED

3

Right and left channels contents are mixed together and displayed on a single pane

colorWaveLinePeak

Color used for rendering peaks of the waveform line. See screenshot A above.

colorWaveLineCenter

Color used for rendering the center of the waveform line. See screenshot A above.

nWaveLineIntensityFactor

Factor of gradient intensity of the waveform line.

This value can range from 0 to 100 with a default value of 50. Values outside of this range will be automatically capped to the nearest valid value.

On the screenshot below you can appreciate the difference between the default value 50 (on the left) and a value of 20 (on the right):

colorWaveBackground

Color used for rendering the waveform background. See screenshot A above.

bUseHalfColorsForPeaks

Boolean value that specifies if waveform peaks will have a half intensity color.

This field is ignored when colors set into the colorWaveLinePeak and colorWaveLineCenter fields are different.

Supported values are the following:

Mnemonic constant

Meaning

False

Doesn't use half color for peaks

True (default)

Uses half color for peaks

nSelectionMode

Specifies how waveform selection is rendered. See screenshots A and B above.

Supported values are the following:

Mnemonic constant

Value

Meaning

WAVE_SEL_INVERT_COLORS (default)

0

Render selection by inverting waveform colors.

WAVE_SEL_TRANSPARENT_GLASS

1

Render selection simulating a transparent glass. See screenshot B above.

WAVE_SEL_CUSTOM_COLORS

2

Render selection by using custom colors. See screenshot A above.

colorWaveLineSelPeak

Color used for rendering gradient of peaks of the waveform line when selected. See screenshot A above.

This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_CUSTOM_COLORS.

colorWaveLineSelCenter

Color used for rendering gradient of center of the waveform line when selected. See screenshot A above.

This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_CUSTOM_COLORS.

colorWaveSelBackground

Color used for rendering the waveform background when selected. See screenshot A above.

This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_CUSTOM_COLORS.

colorTransparentGlass

Color used for rendering the transparent glass selection. See screenshot B above.

This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_TRANSPARENT_GLASS.

nTransparentGlassFactor

Transparent factor for rendering the transparent glass selection.

This value can range from 0 (total opacity) to 255 (total transparency)  with a default value of 128. Values outside of this range will be automatically capped to the nearest valid value.

This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_TRANSPARENT_GLASS.

colorVolumeLevelLine

Color used for rendering horizontal lines related to the volume level. See screenshot A above.

You can set this field to -1 in order to hide volume level lines.

colorTimeLine

Color used for rendering vertical lines related to time. See screenshot A above.

You can set this field to -1 in order to hide time lines.

nTransparentGlassType

Type of transparent glass.

Supported values are the following:

Mnemonic constant

Value

Meaning

TRANSP_GLASS_TYPE_FLAT

0

Flat glass.

TRANSP_GLASS_TYPE_3D_VERT (default)

1

3D vertical glass.

TRANSP_GLASS_TYPE_3D_HORZ

2

3D horizontal glass.

This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_TRANSPARENT_GLASS.

On the screenshot below you can appreciate the difference between the available settings:

nTransparentGlassPos3D

Position of the 3D effect for the transparent glass.

This value can range from 0 to 100 with a default value of 50. Values outside of this range will be automatically capped to the nearest valid value.

This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_TRANSPARENT_GLASS.

bTransparentGlassInvert3D

Boolean value that specifies if the transparency of the 3D effect is inverted.

Supported values are the following:

Mnemonic constant

Meaning

False (default)

Doesn't invert 3D effect

True

Inverts 3D effect

This setting is ignored when the nSelectionMode field above is set to a value different from WAVE_SEL_TRANSPARENT_GLASS.

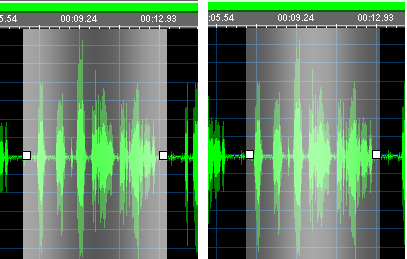

On the screenshot below you can appreciate the difference between the available settings (inverted 3D effect on the left):

bDrawLinesOverWave

Boolean value that specifies if time and volume lines must be drawn over the waveform.

Supported values are the following:

Mnemonic constant

Meaning

False (default)

Time and volume lines are drawn under the waveform.

True

Time and volume lines are drawn over the waveform.
