WANALYZER_VERTICAL_LINE structure

Previous pageReturn to chapter overviewNext page

The WANALYZER_VERTICAL_LINE structure describes settings applied to a vertical line added to the Waveform Analyzer through the GraphicItemVerticalLineAdd method. The current settings can be retrieved through the GraphicItemVerticalLineParamsGet method and modified through the GraphicItemVerticalLineParamsSet method.





Visual C++ definition



typedef struct

{

         OLE_COLOR color;

         long nDashStyle;

         short nWidth;

         short nTranspFactor;

         long nHighCap;

         long nLowCap;

         long nDashCap;

} WANALYZER_VERTICAL_LINE;



This data structure is defined inside the WavMmsEngDef.h header file which can be found inside the product's Include directory (default C:\Program Files\Active Waveform Analyzer\include).



Visual Basic definition



Public Type WANALYZER_VERTICAL_LINE

         color As OLE_COLOR

         nDashStyle As enumWaveformLineDashStyles

         nWidth As Integer

         nTranspFactor As Integer

         nHighCap As enumLineCaps

         nLowCap As enumLineCaps

         nDashCap As enumLineDashCaps

End Type



This data structure is defined inside the AsoedDef.bas module file which can be found inside the product's Include directory (default C:\Program Files\Active Sound Recorder\include).





Member

Description





color

Color used for rendering the line.

nDashStyle

Line dash style.

Supported values are the following:

Mnemonic constant

Value

Meaning

LINE_DASH_STYLE_SOLID

0

Solid line.

LINE_DASH_STYLE_DASH

1

Dashed line.

LINE_DASH_STYLE_DOT

2

Dotted line.

LINE_DASH_STYLE_DASH_DOT

3

Alternating dash-dot line line.

LINE_DASH_STYLE_DASH_DOT_DOT

4

Alternating dash-dot-dot line line.

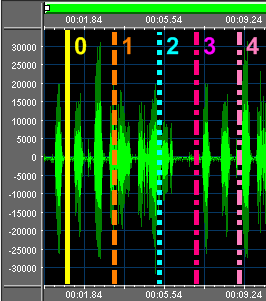

On the screenshot below you can see the different types of vertical lines with the corresponding value displayed on the buddy text:



nWidth

Line width in pixels.

nTranspFactor

Transparent factor. This value can range from 0 (total opacity) to 255 (total transparency). Values outside of this range will be automatically capped to the nearest valid value.

nHighCap

Type of cap for the high end of the line.

Supported values are the following:

Mnemonic constant

Value

Meaning

LINE_CAP_SQUARE

0

Specifies a square cap.

LINE_CAP_ROUND

1

Specifies a circular cap.

LINE_CAP_TRIANGLE

2

Specifies a triangular cap.

LINE_CAP_SQUARE_ANCHOR

3

Specifies that the line ends are anchored with a square.

LINE_CAP_ROUND_ANCHOR

4

Specifies that the line ends are anchored with a circle.

LINE_CAP_DIAMOND_ANCHOR

5

Specifies that the line ends are anchored with a diamond.

LINE_CAP_ARROW_ANCHOR

6

Specifies that the line ends are anchored with arrowheads.

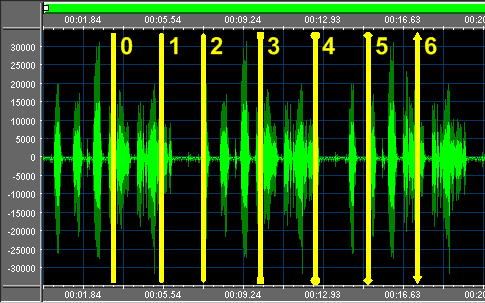

On the screenshot below you can see the different types of line caps with the corresponding value displayed on the buddy text:



nLowCap

Type of cap for the low end of the line.

Supported values are the same as seen for the nHighCap field above.

nDashCap

Type of dash/dot cap for the line.

Supported values are the following:

Mnemonic constant

Value

Meaning

LINE_DASH_CAP_FLAT

0

Specifies a square cap that squares off both ends of each dash.

LINE_DASH_CAP_ROUND

1

Specifies a circular cap that rounds off both ends of each dash.

LINE_DASH_CAP_TRIANGLE

2

Specifies a triangular cap that points both ends of each dash.



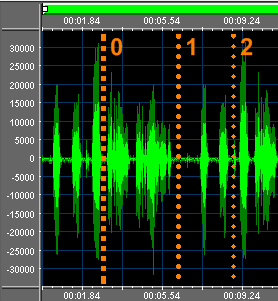

On the screenshot below you can see the different types of line dash caps with the corresponding value displayed on the buddy text:
