How to use enumerated types

Previous pageReturn to chapter overviewNext page

The use of enumerated types improves the readability of your code and, thanks to the features offered by Microsoft's Intellisense, will ease the coding phase.



The following is the full list of enumerated types with their associated properties:



Enumerated type

Corresponding properties or parameters

enumErrorCodes

LastError property

enumRecorderStates

Status property

enumVuBandsMode

VUMeter.BandType property

enumOscillType

Oscilloscope.Type property

enumWaveformRes

Waveform.Resolution property

enumCdActions

nAction parameter of the PerformActionOnCd method

enumCdStates

return value of GetCdStatus method

enumCdIdCodes

nIdentType parameter of the GetCdIdentification method

enumCddbAlbumInfo

nInfo parameter of the CddbGetAlbumInfo method

enumCdCoverSizes

nCoverSize parameter of the GetCdCoverPictureURL, GetCdCoverPictureFile methods

enumEncodingFormats

EncodeFormats.ForRecording, EncodeFormats.ForCdRipping and EncodeFormats.ForExporting properties

enumResampleModes

EncodeFormats.ResampleMode property

enumWmaEncodeModes

EncodeFormats.WMA.EncodeMode property and nEncodeMode parameter of the EncodeFormats.WMA.GetEncodingProfileInfo, EncodeFormats.WMA.GetEncodingCBRCount, EncodeFormats.WMA.GetEncodingCBR, EncodeFormats.WMA.GetEncodingProfileProCount and EncodeFormats.WMA.GetEncodingProfileProInfo methods.

enumMp2EncodeModes

EncodeFormats.MP2.EncodeMode property

enumMp3EncodeModes

EncodeFormats.MP3.EncodeMode property

enumMp3EncodePresets

EncodeFormats.MP3.Preset property

enumOggEncodeModes

EncodeFormats.OGG.EncodeMode property

enumAacEncodeModes

EncodeFormats.AAC.EncodeMode property

enumWavEncodeModes

EncodeFormats.WAV.EncodeMode property

enumAcmEncodeModes

EncodeFormats.ACM.EncodeMode property

enumW64EncodeModes

EncodeFormats.W64.EncodeMode property

enumAIFFEncodeModes

EncodeFormats.AIFF.EncodeMode property

enumAUEncodeModes

EncodeFormats.AU.EncodeMode property

enumPAFEncodeModes

EncodeFormats.PAF.EncodeMode property

enumSVXEncodeModes

EncodeFormats.SVX.EncodeMode property

enumNISTEncodeModes

EncodeFormats.NIST.EncodeMode property

enumVOCEncodeModes

EncodeFormats.VOC.EncodeMode property

enumIRCAMEncodeModes

EncodeFormats.IRCAM.EncodeMode property

enumPVFEncodeModes

EncodeFormats.PVF.EncodeMode property

enumCAFEncodeModes

EncodeFormats.CAF.EncodeMode property

enumFLACEncodeModes

EncodeFormats.FLAC.EncodeMode property

enumRAWEncodeModes

EncodeFormats.RAW.EncodeMode property and nEncodeMode parameter of the StartFromFileRaw, StartFromMemoryRaw and StartFromQueueRaw methods

enumRecordingModes

nMode parameter of the SetRecordingMode method

enumScaleUnits

nScaleUnits parameter of the RecordedSound.SeekPlayPosition and CdRippingSetRange methods

enumWaveformTypes

nWaveformType parameter of the WaveformAnalyzer.GetMinMaxPeakLevelsForRange method

enumTrackerCursorModes

nCursorMode parameter of the WaveformAnalyzer.SetTrackerCursors method

enumGraphicBarOrientations

nOrientation member of the GRAPHIC_BAR_SETTINGS class

enumGraphicBarShapes

nShape member of the GRAPHIC_BAR_SETTINGS class

enumAnalyzerResolutions

nResolution field of the WANALYZER_GENERAL_SETTINGS data structure

enumWaveformStereoModes

nStereoVisualizationMode field of the WANALYZER_WAVEFORM_SETTINGS and WSCROLLER_SETTINGS data structures

enumBitmapModes

nWaveformType parameter of the WaveformAnalyzer.SetBackPictureFromFile and WaveformAnalyzer.SetBackPictureFromHandle methods

enumVolumeScales

nScaleType parameter of the ASIO.DeviceChannelVolumeGet, ASIO.DeviceChannelVolumeSet, ASIO.DeviceMasterVolumeGet and ASIO.DeviceMasterVolumeSet, OutputVolumeSet and OutputVolumeGet methods and nAmplitudeScale field of the WANALYZER_RULERS_SETTINGS data structure

enumAsioChannelModes

nChannelMode parameter of the ASIO.DeviceStart method

enumDriverTypes

nDriverType parameter of the InitDriversType method and return value of the GetInputDeviceDriverType method

enumWaveAnalyzerRectangles

nIdRectangle parameter of the WaveformAnalyzer.GetRectangle method

enumInputChannelTypes

Return value of the GetInputDeviceChannelType method

enumVolumeScales

nScaleType parameter of the OutputVolumeSet and OutputVolumeGet methods.

enumGraphicFormats

nFormat parameter of the WaveformAnalyzer.SnapshotViewSaveToFile

enumPlaybackStatus

Return value of the GetPlaybackStatus method

enumCoreAudioDeviceStates

nStateMask parameter of the CoreAudio.Enum method

enumCoreAudioDataFlows

nDataFlow parameter of most methods of the CoreAudioDevicesMan class

enumCoreAudioDeviceNames

nTypeOfName parameter of the CoreAudioDevices.DescGet method

enumCoreAudioRoles

nRole parameter of the CoreAudioDevices.DefaultGet method

enumCoreAudioDeviceStates

nStatus parameter of the CoreAudioDevices.StatusGet method

enumCoreAudioCaptureParts

nPartId parameter of the CoreAudioDevices.CapturePartChannelCountGet, CoreAudioDevices.CapturePartChannelVolumeGet and CoreAudioDevices.CapturePartChannelVolumeSet methods

enumCoreAudioRenderParts

nPartId parameter of the CoreAudioDevices.RenderPartChannelCountGet, CoreAudioDevices.RenderPartChannelVolumeGet. CoreAudioDevices.RenderPartChannelVolumeSet, CoreAudioDevices.RenderPartMuteGet and CoreAudioDevices.RenderPartMuteSet methods

enumWasapiDeviceTypes

nDeviceType parameter of the WASAPI.DeviceCoreAudioIndexGet, WASAPI.DeviceGetCount, WASAPI.DeviceGetDesc, WASAPI.DeviceIsFormatSupported, WASAPI.DeviceIsStarted, WASAPI.DeviceLatencyGet, WASAPI.DeviceMuteGet, WASAPI.DeviceMuteSet, WASAPI.DeviceSharedFormatGet, WASAPI.DeviceStartExcusive, WASAPI.DeviceStartShared, WASAPI.DeviceStop, WASAPI.DeviceVolumeGet, WASAPI.DeviceVolumeSet methods

enumWasapiChannelModes

nChannelMode parameter of the WASAPI.DeviceStartShared method

enumCoreAudioDeviceTypes

nDeviceType parameter of the CoreAudioDevices.TypeGet method

enumHorizontalLineHeadlineType

nHeadlineType parameter of the WaveformAnalyzer.GraphicItemHorizontalLineAdd and WaveformAnalyzer.GraphicItemHorizontalLineParamsSet methods

enumHorizontalLineChannel

nChannel parameter of the WaveformAnalyzer.GraphicItemHorizontalLineAdd, WaveformAnalyzer.GraphicItemHorizontalLineParamsSet methods and nChannel field of the WANALYZER_HORIZONTAL_LINE data structure

enumGraphicItemType

nType parameter of the WaveformAnalyzer.GraphicItemTypeGet, WaveformAnalyzer.GraphicItemsTypeShow and WaveformAnalyzer.GraphicItemUniqueIdGet methods

enumGraphicItemMaskValues

nGraphicItemsMask parameter of the WaveformAnalyzer.GraphicItemsMouseMoveEnable and WaveformAnalyzer.SnapshotViewGraphicItemsMaskSet methods and nGraphicItemsMask field of the WANALYZER_SCROLLBARS_SETTINGS and WSCROLLER_SETTINGS data structures

enumWaveformLineDashStyles

Some field of the WANALYZER_GENERAL_SETTINGS, WANALYZER_VERTICAL_LINE, WANALYZER_HORIZONTAL_LINE and WSCROLLER_SETTINGS data structures

enumLineCaps

Some field of the WANALYZER_GENERAL_SETTINGS, WANALYZER_VERTICAL_LINE, WANALYZER_HORIZONTAL_LINE and WSCROLLER_SETTINGS data structures

enumLineDashCaps

Some field of the WANALYZER_GENERAL_SETTINGS, WANALYZER_VERTICAL_LINE, WANALYZER_HORIZONTAL_LINE and WSCROLLER_SETTINGS data structures

enumBuddyAlignment

nAlignment field of the WANALYZER_BUDDY_PICTURE and WANALYZER_BUDDY_TEXT data structures

enumWaveformSelectionMode

nSelectionMode field of the WANALYZER_WAVEFORM_SETTINGS data structure

enumTranspGlassType

nTransparentGlassType field of the WANALYZER_WAVEFORM_SETTINGS and WANALYZER_SCROLLBARS_SETTINGS data structures

enumWaveScrollbarType

nType field of the WANALYZER_SCROLLBARS_SETTINGS data structure

enumScrollbarWaveVisibleRangeType

nVisibleRangeType field of the WANALYZER_SCROLLBARS_SETTINGS data structure

enumWaveScrollerAutoUpdate

nUpdateSpeed field of the WSCROLLER_SETTINGS data structure

enumAsioRecordMonoToStereoMode

nMonoChanToStereoOutMode parameter of the ASIO.DeviceRecordParamsGet and ASIO.DeviceRecordParamsSet methods

enumCommonDialogInfo

nInfo parameter of the CommonDialogGetInfoFromLastOpen and CommonDialogGetInfoFromLastSave methods

enumWaveSnapshotViewMode

nMode parameter of the WaveformAnalyzer.SnapshotViewSaveToFile, WaveformAnalyzer.SnapshotViewSaveToMemory , and WaveformAnalyzer.SnapshotViewDrawToHdc methods

enumWaveformChannels

nChannel parameter of the WaveformAnalyzer.SnapshotViewSaveToFile, WaveformAnalyzer.SnapshotViewSaveToMemory , and WaveformAnalyzer.SnapshotViewDrawToHdc methods

enumWaveAnalyzerViewModes

nMode parameter of the WaveformAnalyzer.ViewModeSet and WaveformAnalyzer.ViewModeGet methods

enumFilterNames

nFilterName parameter of the FilterApply, FilterParametersSet, FilterParametersGet and RecordedSound.FilterApply methods

enumFilterTypes

nFilterType parameter of the FilterApply, FilterParametersSet, FilterParametersGet and RecordedSound.FilterApply methods

enumZipEncryptionTypes

nEncryptionType parameter of the ZIP.Create method

enumAacPlusEncodeModes

EncodeFormats.AACPlus.EncodeMode property



The following examples, under different development environments, show how to use enumerated types in your code. These examples assume that one instance of the control, named AudioSoundRecorder1, exists on a form. The purpose of this sample code is to check if the recorder is currently ripping a CD track.



Microsoft Visual Basic.NET

Microsoft Visual C#.NET





Microsoft Visual Basic.NET



After typing the code

If AudioSoundRecorder1.Status

press the "=" key on your keyboard. IntelliSense displays the listbox of the possible values that can be assigned to the method parameter.

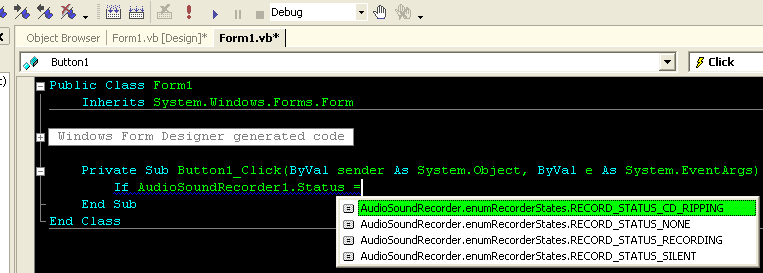

asrecnet_i000067



Select the AudioSoundRecorder.enumRecorderStates.RECORD_STATUS_CD_RIPPING value so the complete line of code will be:

If AudioSoundRecorder1.Status = AudioSoundRecorder.enumRecorderStates.RECORD_STATUS_CD_RIPPING

 ' do something

 ...

Else

 ' do something else

 ...

End If





Microsoft Visual C#.NET



This environment requires a couple of additional lines of code to make use of Intellisense. First, you must add the components namespace to your code so the following line must be inserted at the beginning of the form management file:

using AudioSoundRecorder;



After typing the code...

if (audioSoundRecorder1.Status == enumRecorderStates

press the "." key on your keyboard. Note that to use Intellisense, you must add enumRecorderStates after the equal sign in order to trigger the enumRecorderStates enumerated type. After typing a period, Intellisense is activated.

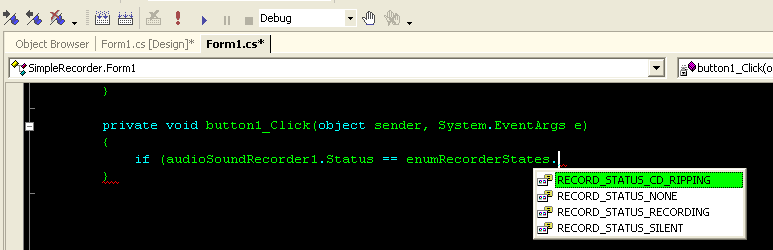

asrecnet_i000065



Select the RECORD_STATUS_CD_RIPPING value so the complete line of code will be:

if (audioSoundRecorder1.Status == enumRecorderStates.RECORD_STATUS_CD_RIPPING)

   // do something

   ....

else

   // do something else

   ....
